Air filter media

Mask electrostatic filter material Air filter media Polymer Melt-Blown Material Customized / R&D
PP Meltblown Non-woven for Air filter media
Solutions for Air Purifier Filters and Automotive Cabin Air Systems

ACME provide variety of meltblown fabric applications, including air purifier filters, automotive air filters, and customized solutions tailored to your specific needs Air Filter Nonwoven Fabric. Can choose the appropriate specifications based on your specific needs to ensure optimal product performance.

PP meltblown nonwoven fabric | Solutions for Air Purifier Filters and Automotive Cabin Air Systems

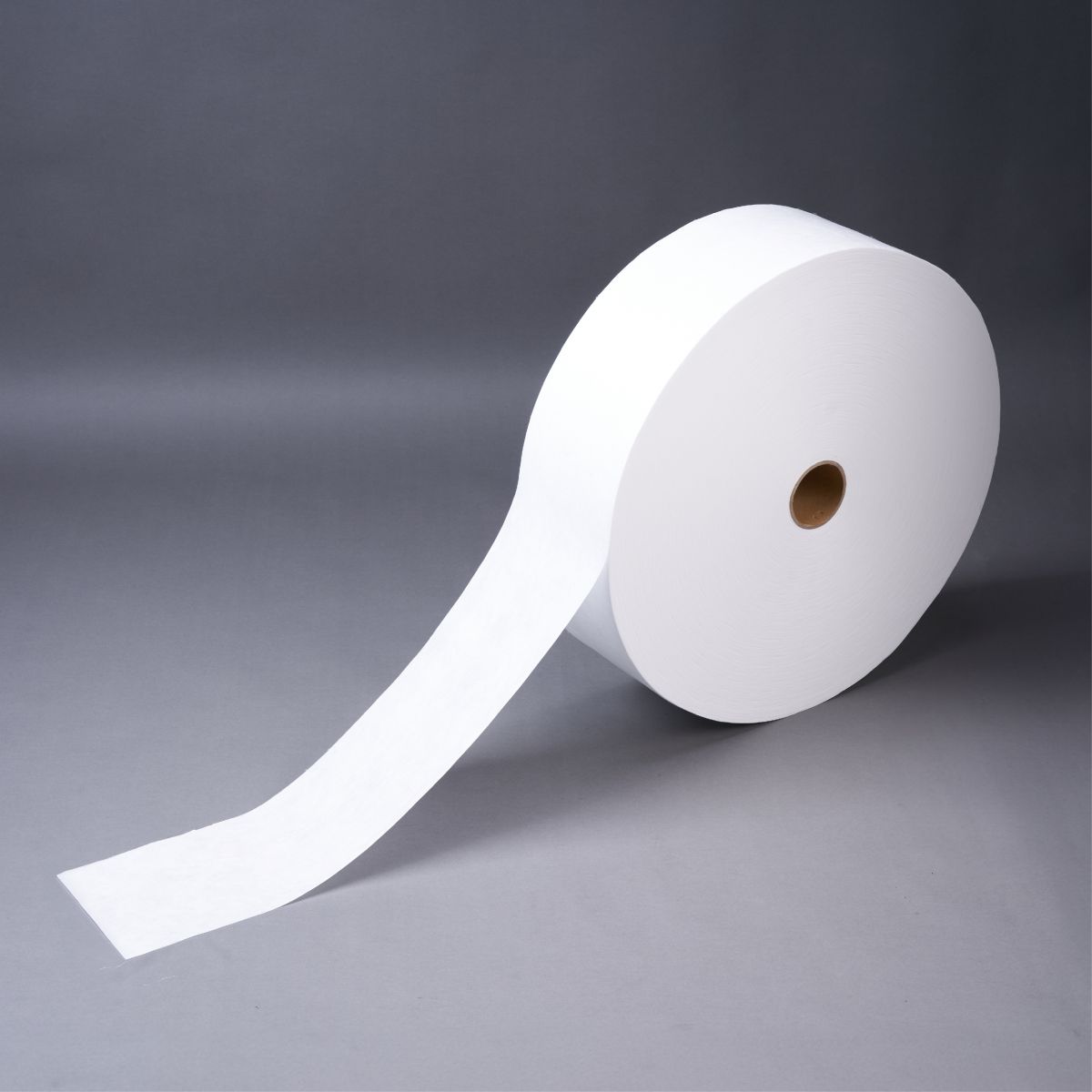

Product Appearance: High-Efficiency Filter Media
Product Appearance

Product Video

Product Data

PP meltblown nonwoven fabric Representative Model
Model Thickness Width Basis Weight Fiber Diameter Filtration Efficiency Grade
AF-1700 (PP Meltblown Air Filtration Nonwoven) 0.06 mm ~ 0.2 mm 20 cm ~ 160 cm 20 gsm ~ 100 gsm 1.5 μm ~ 2.5 μm ≥99.995% M5/M6/F7/F8/F9/E10/E11/E12/H13/H14

Air Filter Efficiency Classes Explained

Different filter classes indicate the overall particle capture efficiency at specific particle sizes. Here’s a quick card-style reference:

F7–F9 EN 779

Replaced by ISO 16890, but still commonly used in the industry
Typical Efficiency
F7: 80–90% ｜ F8: 90–95% ｜ F9: ≥95%
Reference Particle Size
≈0.4 μm
Commonly used in HVAC secondary/final filtration, commercial buildings, and medical HVAC upgrades.

E10–E12 EN 1822 (EPA)

Overall Efficiency
E10: ≥85% ｜ E11: ≥95% ｜ E12: ≥99.5%
Reference Particle Size
≥0.5 μm (method-dependent)
Typically used as high-efficiency sections or pre-HEPA filters; depending on design, can approach HEPA-level performance.

H13–H14 EN 1822 (HEPA)

Overall Efficiency
H13: ≥99.95% ｜ H14: ≥99.995%
Reference Particle Size
≥0.3 μm (H13 local ≥99.75%)
Used in cleanrooms, critical medical zones, and ultra-high cleanliness environments.

*Note: EN 779 has been replaced by ISO 16890, but F-classes are still widely referenced in purchasing and communication. Actual efficiency varies depending on test method, airflow, and media design.

Microscopic Fiber Image (Thumbnail)

Microscopic Fiber Image

Fiber Diameter Distribution (Front) (Thumbnail)

Fiber Diameter Distribution (Front)

Fiber Diameter Distribution (Back) (Thumbnail)

Fiber Diameter Distribution (Back)

*The above data images are for reference only and do not represent final customized specifications. Detailed specs are subject to official quotation and technical documents.

Product Application

Application Example: Air Purifiers & HVAC Filtration
Image Source: Unsplash
Application Example: Cooking Fume & Second-hand Smoke Filtration
Image Source: Pexels
Application Example: Vehicle Cabin & Cleanroom Filtration
Image Source: Unsplash
  • Air purifier & HVAC filtration
  • Cooking fume & second-hand smoke filtration
  • Vehicle cabin air filtration
  • Cleanroom filtration

HVAC Filter Media – Frequently Asked Questions

Quick answers for procurement and engineers. (Made in Taiwan, Worldwide shipments supported)
Do you make HVAC filter media?
Yes. Acme Filter produces the AF-17 series PP meltblown nonwovens engineered for HVAC and air purifier filters, supporting grades M5–F9, E10–E12, and H13–H14 depending on construction and charge treatment.
Can you provide samples for testing before bulk orders?
Yes. We provide sample rolls or cut sheets for performance testing and evaluation. This helps customers verify efficiency and pressure drop in their own lab or pilot production before committing to bulk orders.
What efficiency and pressure drop can you provide?
Typical overall efficiencies range by design, with pressure drop depending on media weight and airflow. We provide sample rolls and lab data for target specifications.
What widths, basis weights, and fiber diameters are available?
Widths 20–160 cm, basis weights 20–100 gsm, fiber diameters ~1.5–2.5 μm (representative). Customization is available for electrostatic charge, lamination, and pleating compatibility.
Can you customize media for multi-layer HVAC cartridges?
Yes. We support layered constructions (pre + final), charge retention optimization, and pleatable designs for V-bank or panel filters.
Do you provide consistency and batch traceability?
Yes. Each batch ships with QC records and is traceable by lot. Long-term stability and aging/charge-decay tests can be arranged.
Where do you manufacture and ship from?
Made in Taiwan. Worldwide shipments are supported with FOB Keelung.
What are the typical MOQs and lead times?
MOQs depend on width/grade (commonly by roll). Standard lead time is 3–5 weeks after confirmation; expedited options are available.
Do you provide RoHS/REACH and safety documentation?
Yes. RoHS/REACH compliance statements and MSDS are available for the supplied media when applicable.
Can you sign NDAs and support OEM/ODM?
Yes. We routinely work under NDA and support OEM/ODM development for regional HVAC partners.

Interested in this material? Get a quote or request a sample today!

We provide full specifications, material data, and sample evaluation services to help you make fast purchasing decisions.
